Log Analytics is now natively supporting Resource Graph queries
Creating Log Analytics workspace Log queries
sometimes requires data from resources that is not available in any Log Analytics workspace
table. For example: tags, resource properties, …

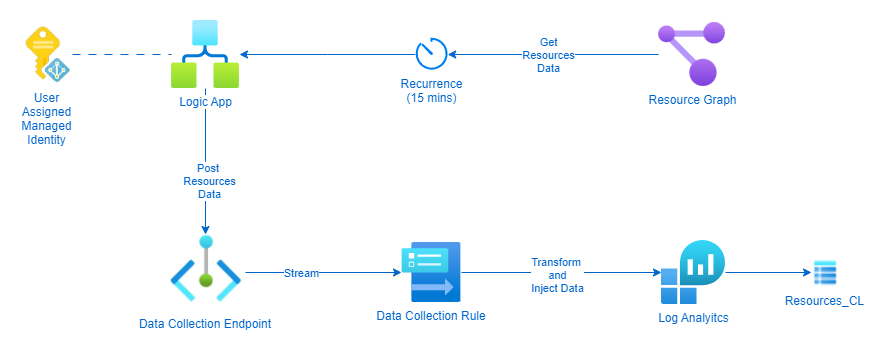

As workaround, I developed a Logic App
that queries Azure Resource Graph
and injects the Logs in a Log Analytics workspace
using the Azure Monitor
Data Collector API:
Azure Resource Graph
for all Azure Resources
(interval 15 minutes)json
data from all Azure Resources
to the Data Collection Endpoint
Data Collection Rule
to transform the data and stream to a Log Analytics workspace Custom Table
In order to ingest data we have to setup a Log Analytics workspace
custom table with a predefined schema. The fields more or less match the fields from the Azure Resource Graph Resources
, but some of them are not allowed to be used in a custom Log Analytics workspace Table
Here is the schema I used to create the table:
table.json
{
"properties": {
"schema": {
"name": "Resources_CL",
"columns": [
{
"name": "TimeGenerated",
"type": "datetime",
"description": "The time at which the data was generated"
},
{
"name": "extendedLocation",
"type": "dynamic"
},
{
"name": "identity",
"type": "dynamic"
},
{
"name": "location",
"type": "dynamic"
},
{
"name": "managedBy",
"type": "dynamic"
},
{
"name": "name",
"type": "string"
},
{
"name": "plan",
"type": "dynamic"
},
{
"name": "properties",
"type": "dynamic"
},
{
"name": "resourceGroup",
"type": "dynamic"
},
{
"name": "resourceId",
"type": "string"
},
{
"name": "resourceKind",
"type": "dynamic"
},
{
"name": "resourceTenantId",
"type": "string"
},
{
"name": "resourceType",
"type": "string"
},
{
"name": "sku",
"type": "dynamic"
},
{
"name": "subscriptionId",
"type": "string"
},
{
"name": "tags",
"type": "dynamic"
},
{
"name": "zones",
"type": "dynamic"
}
]
}
}
}
There are a few ways to create a Log Analytics Custom Table using the Portal, API, CLI or PowerShell.
For this example I used the PowerShell
way with the Invoke-RestMethod
# variables
$resourceGroup = "<your resource group>"
$logAnalyticsworkspaceId = "<your Log Analytics workspace Resource Id>"
$tableName = "Resources_CL"
function get-azCachedAccessToken() {
$currentAzureContext = Get-AzContext
$azProfile = [Microsoft.Azure.Commands.Common.Authentication.Abstractions.AzureRmProfileProvider]::Instance.Profile
$profileClient = New-Object Microsoft.Azure.Commands.ResourceManager.Common.RMProfileClient($azProfile)
$token = $profileClient.AcquireAccessToken($currentAzureContext.Tenant.TenantId)
$token.AccessToken
}
# create authentication header
$token = get-azCachedAccessToken
$authHeader = @{
'Authorization' = "Bearer $token"
'Content-Type' = "application/json"
}
# create table
Write-Output "Creating new table '$tableName'.."
$uri = "https://management.azure.com$($logAnalyticsworkspaceId)/tables/$($tableName)?api-version=2021-12-01-preview"
$jsonBody = [String](Get-Content -Path .\table.json)
Invoke-RestMethod -Method Put -Uri $uri -Headers $authHeader -Body $jsonBody

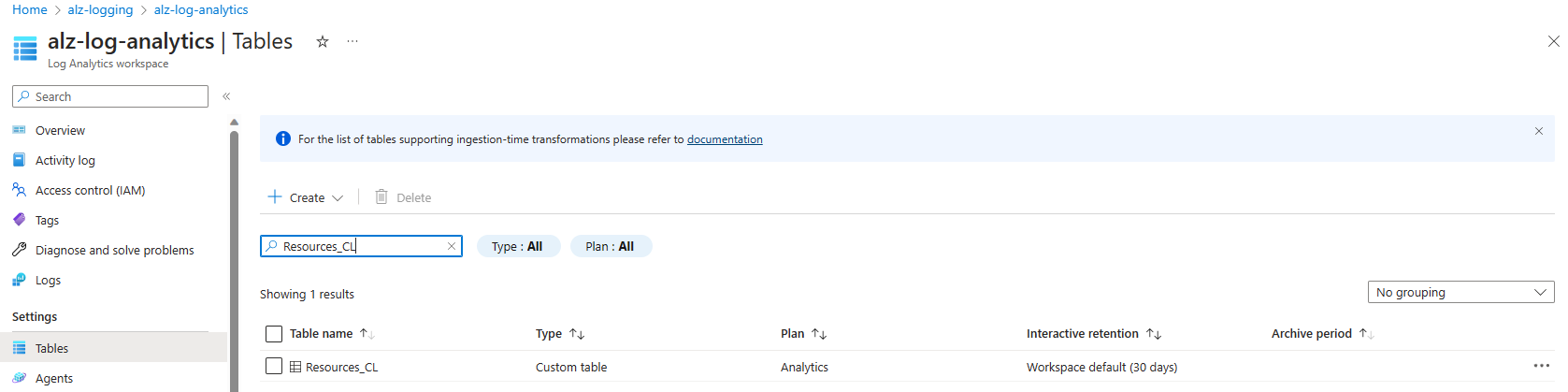

The result is a custom Log Analyitcs workspace Table
:
To have an endpoint to send our data to, we have to setup a Data collection endpoint
.
To setup the Data collection endpoint
, I use this ARM template:
dataCollectionEndpoint.json
{
"$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"parameters": {
"dataCollectionEndpointName": {
"type": "string",
"metadata": {
"description": "Specifies the name of the Data Collection Endpoint to create."
}
},
"location": {
"type": "string",
"defaultValue": "westeurope",
"allowedValues": [
"westus2",
"eastus2",
"eastus2euap",
"westeurope"
],
"metadata": {
"description": "Specifies the location in which to create the Data Collection Endpoint."
}
}
},
"resources": [
{
"type": "Microsoft.Insights/dataCollectionEndpoints",
"name": "[parameters('dataCollectionEndpointName')]",
"location": "[parameters('location')]",
"apiVersion": "2021-04-01",
"properties": {
"networkAcls": {
"publicNetworkAccess": "Enabled"
}
}
}
],
"outputs": {
"dataCollectionEndpointId": {
"type": "string",
"value": "[resourceId('Microsoft.Insights/dataCollectionEndpoints', parameters('dataCollectionEndpointName'))]"
}
}
}
and use the following PowerShell script to deploy:
# variables
$location = "<your deployment location>"
$resourceGroup = "<your resource group>"
$dataCollectionEndpointName = "<your data collection endpoint name>"
# deploy dataCollectionEndpoint
Write-Output "Deploying Data Collection Endpoint '$dataCollectionEndpointName'.."
New-AzResourceGroupDeployment -ResourceGroupName $resourceGroup -Name "D_dataCollectionEndpoint" -TemplateFile .\dataCollectionEndpoint.json `
-dataCollectionEndpointName $dataCollectionEndpointName `
-location $location
This is where the magic happens, with the Data collection rule, we can setup:
resourceId
of the Data collection endpoint
created earlierLog Analytics workspace
.
Define a schema for the source of data. This is the schema of the Resources
query that we fetched from Azure Resource Graph
Log Analytics workspace
is currently supported as a destination. Each Log Analytics workspace
destination requires the full workspace resourceId
and a friendly name that will be used elsewhere in the DCR
to refer to this workspace.Log Analytics workspace
.custom Log Analytics workspace table
.Log Analytics table
, or Custom-[tableName] when ingesting data into a custom-created table. Only one destination is allowed per stream.To deploy the Data Collection Rule, I use this ARM template:
dataCollectionRules.json
{
"$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"parameters": {
"dataCollectionRuleName": {
"type": "string",
"metadata": {
"description": "Specifies the name of the Data Collection Rule to create."
}
},
"location": {
"type": "string",
"defaultValue": "westeurope",
"allowedValues": [
"westus2",
"eastus2",
"eastus2euap",
"westeurope"
],
"metadata": {
"description": "Specifies the location in which to create the Data Collection Rule."
}
},
"workspaceResourceId": {
"type": "string",
"metadata": {
"description": "Specifies the Azure resource ID of the Log Analytics workspace to use."
}
},
"endpointResourceId": {
"type": "string",
"metadata": {
"description": "Specifies the Azure resource ID of the Data Collection Endpoint to use."
}
}
},
"resources": [
{
"type": "Microsoft.Insights/dataCollectionRules",
"name": "[parameters('dataCollectionRuleName')]",
"location": "[parameters('location')]",
"apiVersion": "2021-09-01-preview",
"properties": {
"dataCollectionEndpointId": "[parameters('endpointResourceId')]",
"streamDeclarations": {
"Custom-Resources_CL": {
"columns": [
{
"name": "id",
"type": "string"
},
{
"name": "name",
"type": "string"
},
{
"name": "type",
"type": "string"
},
{
"name": "tenantId",
"type": "string"
},
{
"name": "kind",
"type": "dynamic"
},
{
"name": "location",
"type": "dynamic"
},
{
"name": "resourceGroup",
"type": "dynamic"
},
{
"name": "subscriptionId",
"type": "string"
},
{
"name": "managedBy",
"type": "dynamic"
},
{
"name": "sku",
"type": "dynamic"
},
{
"name": "plan",
"type": "dynamic"
},
{
"name": "properties",
"type": "dynamic"
},
{
"name": "tags",
"type": "dynamic"
},
{
"name": "identity",
"type": "dynamic"
},
{
"name": "zones",
"type": "dynamic"
},
{
"name": "extendedLocation",
"type": "dynamic"
}
]
}
},
"destinations": {
"logAnalytics": [
{
"workspaceResourceId": "[parameters('workspaceResourceId')]",
"name": "myworkspace"
}
]
},
"dataFlows": [
{
"streams": [
"Custom-Resources_CL"
],
"destinations": [
"myworkspace"
],
"transformKql": "source
| extend TimeGenerated=now()
| extend resourceType=[\"type\"]
| extend resourceId=id
| extend resourceTenantId=tenantId
| extend resourceKind=[\"kind\"]",
"outputStream": "Custom-Resources_CL"
}
]
}
}
],
"outputs": {
"dataCollectionRuleId": {
"type": "string",
"value": "[resourceId('Microsoft.Insights/dataCollectionRules', parameters('dataCollectionRuleName'))]"
}
}
}
To deploy the Data Collection rule, you can use this PowerShell script:
# variables
$location = "<your deployment location>"
$resourceGroup = "<your resource group>"
$dataCollectionRuleName = "<data collection rule name>"
$logAnalyticsWorkspaceResourceId = "<your log analytics workspace resource id>"
$dataCollectionEndpointResourceId = "<data collection endpoint resource id>"
# deploy dataCollectionRule
Write-Output "Deploying Data Collection Rule '$dataCollectionRuleName'.."
New-AzResourceGroupDeployment -ResourceGroupName $resourceGroup -Name "D_dataCollectionRule" -TemplateFile .\dataCollectionRules.json `
-dataCollectionRuleName $dataCollectionRuleName `
-location $location `
-workspaceResourceId $logAnalyticsWorkspaceResourceId `
-endpointResourceId $dataCollectionEndpointResourceId
Now everything is prepared for ingestion, we can setup the Logic App
. The Logic App
will use a User Assigned Managed Identity
that is linked with the Logic App
. Form more details on the setup look at the article Authenticate access to Azure resources with managed identities in Azure Logic Apps
The User Assigned Managed Identity
will allow us to authenticate securely to Azure Resource Graph
and ingest the data into the Custom Log Analytics workspace table
.
We need the following Role Based Access Control (RBAC)
role assignments for the User Assigned Managed Identity
:
Reader
role on the subscription
: To read out the resources of the subscriptionMonitoring Metrics Publisher
role on the Data collection rule
: permissions to post data to the Data collection rule
and Data collection endpoint
NOTE: It can take some time to (up to 30 minutes) get the actual permissions to the Data collection rule!

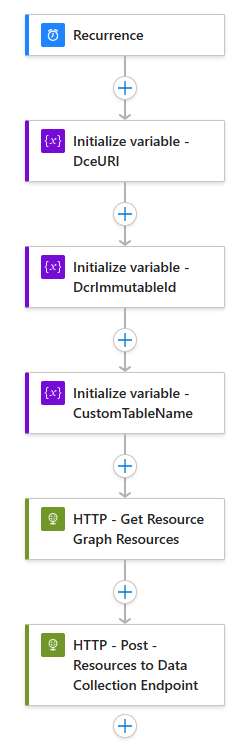

Here’s the Logic App Flow:
A few variables are set
DceURI: the Uri of the Data collection rule (can be found on the Data collection rule Essentials view in the portal)
DcrImmutableId: The immutableId property of the DCR object (can be found on the Data collection rule Essentials JSON view
in the portal)
CustomTableName: The name of the custom table (Resource_CL
)

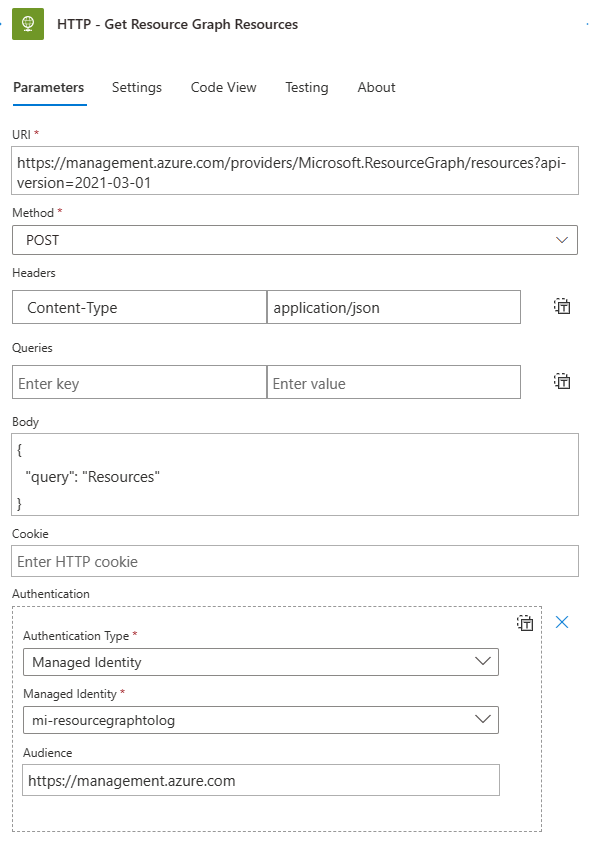

HTTP - Get Resource Graph Resources
Using the Azure Resource Graph API
query the Resources
. The User Assigned Managed Identity
is used for this action.

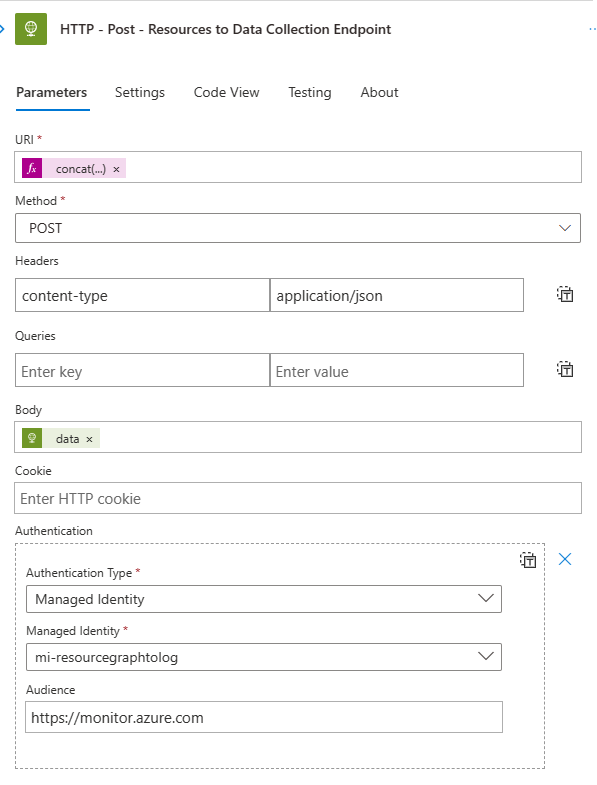

HTTP - Post - Resources to Data Collection Endpoint
Concatinate the variables to a usable endpoint for ingestion: concat(variables(‘DceURI’),’/dataCollectionRules/’,variables(‘DcrImmutableId’),’/streams/Custom-‘,variables(‘CustomTableName’),’?api-version=2021-11-01-preview’)
Ingest the data
field of the previously fetched Azure Resource Graph
query the Resources
data.
The User Assigned Managed Identity
is used for this action.
The data from Azure Resource Graph
will now be ingested into the Resources_CL
custom table every 15 minutes.
You can query the latest records in the Resource_CL
table using the following query:
Resources_CL | summarize arg_max(TimeGenerated,*) by resourceId

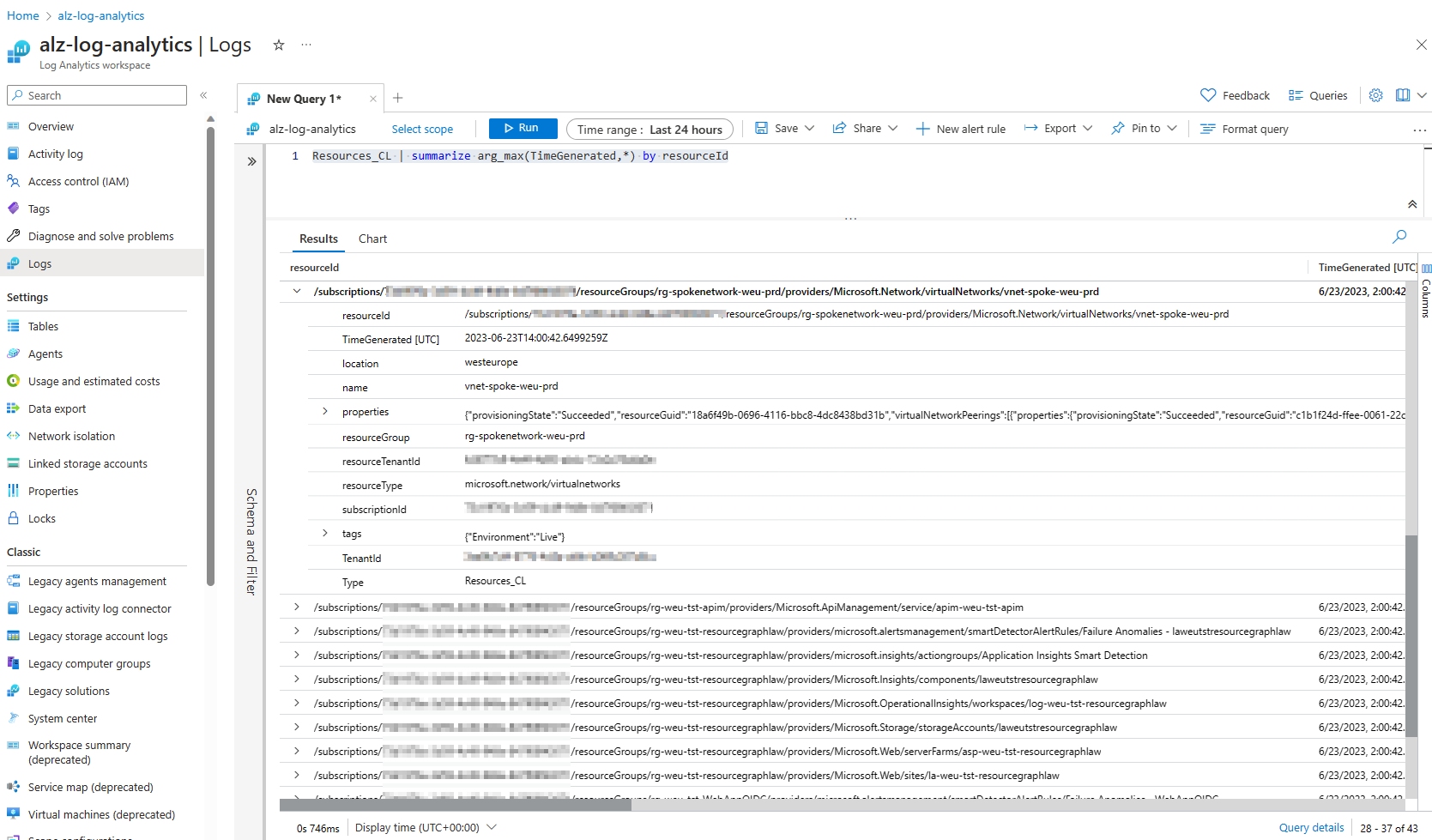

The Result looks like this:
You can now start to join the table data with other data in the platform log default tables.
You can find the templates, scripts and Logic App in my GitHub Repository over HERE.
