Deployment stacks


Table of contents

Introduction

Deployment states

There are multiple Infrastructure as Code languages (Terraform, Pulumi, Bicep, ARM).

Depending on the language used, there is a specific way of holding the state of resources from a deployment:

The state has always been a weakness of Bicep and ARM. The lifecycle of the resources where difficult to track, you could implement workarounds with what-if operations always an additional step to take before a deployment.

Deployment Stacks

Microsoft recently announced a public preview of ARM Deployment Stacks to tackle this. To me this was the missing element in order to use Bicep or ARM templates.

Official documentation can be found over here

Bicep or ARM template files can be submitted to a Deployment Stack, the Deployment Stacks basically define the resources that are managed by the stack.

Creating / Updating Deployment Stacks

Deployment Stacks can be created at the following scopes:

Creating/Update Deployment Stacks PowerShell & CLI commands:

Note: You can Block Unwanted Changes by setting a DenySettingsMode on the Deployment Stack (None, DenyDelete, DenyWriteAndDelete)

Deleting Deployment Stacks

Delete Deployment Stacks PowerShell & CLI commands:

Note: A Cleanup can be done after removal of a Deployment Stack (Resources or/and Resource Groups), this is optional flag by default Resources or/and Resource Groups are detached from a Deployment Stack. Possible flags for Deployment Stack deletion: (DeleteAll, DeleteResourceGroups ,DeleteResources).

Deployment Stack - Subscription Example

In this example, the template will deploy:

The Deployment Stack will be scoped at subscription level.

Bicep Template & Parameter files

bicepdemo1.bicep

targetScope = 'subscription'

// **Parameters**
// Generic Parameters - Used in multiple modules
param parLocation string
param parLocationAbbrevation string
param parEnvironment string
param parPurpose string

resource resResourceGroup 'Microsoft.Resources/resourceGroups@2022-09-01' = {
  name: 'rg-${parLocationAbbrevation}-${parEnvironment}-${parPurpose}'
  location: parLocation
}

// module dynamic windows function app
module modFunctionAppWindowsConsumption '../../modules/functionAppWindowsConsumption/functionAppWindowsConsumption.bicep' = {
  name: 'deploy-fun-${parLocationAbbrevation}-${parEnvironment}-${parPurpose}'
  scope: resourceGroup(resResourceGroup.name)
  params: {
    functionAppName: 'fun-${parLocationAbbrevation}-${parEnvironment}-${parPurpose}'
    functionWorkerRuntime: 'dotnet'
    location: parLocation
    storageAccountName: 'st${parLocationAbbrevation}${parEnvironment}${parPurpose}'
    storageAccountType: 'Standard_LRS'
    applicationInsightsName: 'appi-${parLocationAbbrevation}-${parEnvironment}-${parPurpose}'
    hostingPlanName: 'asp-${parLocationAbbrevation}-${parEnvironment}-${parPurpose}'
  }
}

tst-bicepdemo1.bicepparam

using '../bicepdemo1.bicep'

param parLocation            = 'westeurope'
param parLocationAbbrevation = 'weu'
param parEnvironment         = 'tst'
param parPurpose             = 'bicepdemo1'

Deploy a Deployment Stack

New-Deploymentstack.ps1

$inputObject = @{
    Name                        = "stack-weu-tst-bicepdemo1"
    TemplateFile                = "infra-as-code/bicep/orchestration/bicepdemo1/bicepdemo1.bicep"
    TemplateParameterFile       = "infra-as-code/bicep/orchestration/bicepdemo1/parameters/tst-bicepdemo1.bicepparam"
    DenySettingsMode            = "DenyWriteAndDelete"
    Location                    = "westeurope"
}

New-AzSubscriptionDeploymentStack  @inputObject -Force

Deployment Result

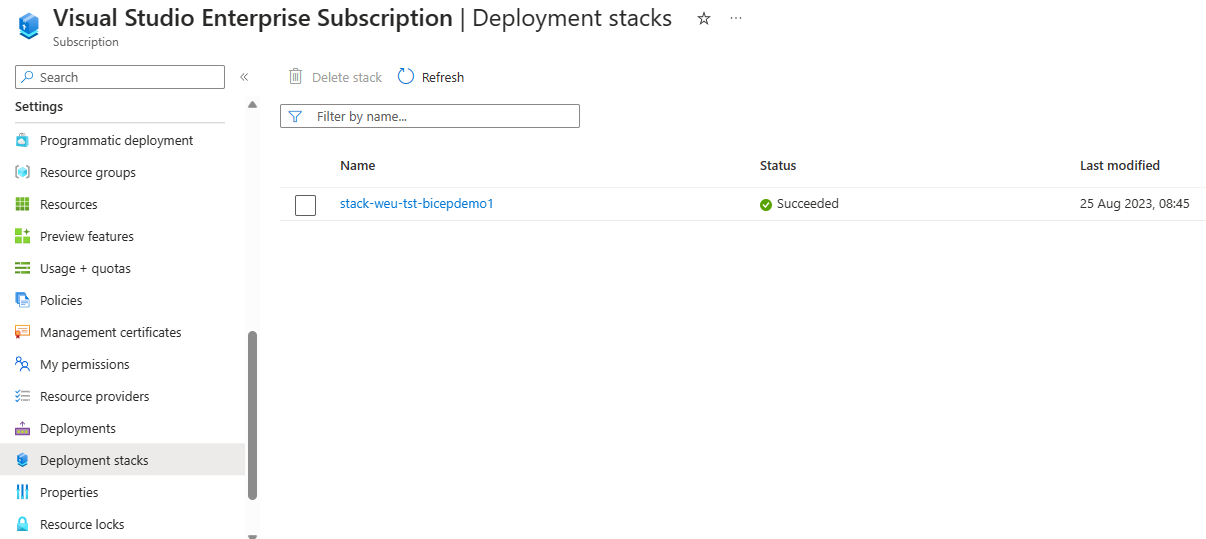

Ar subscription level, the Deployment Stack will become visible:

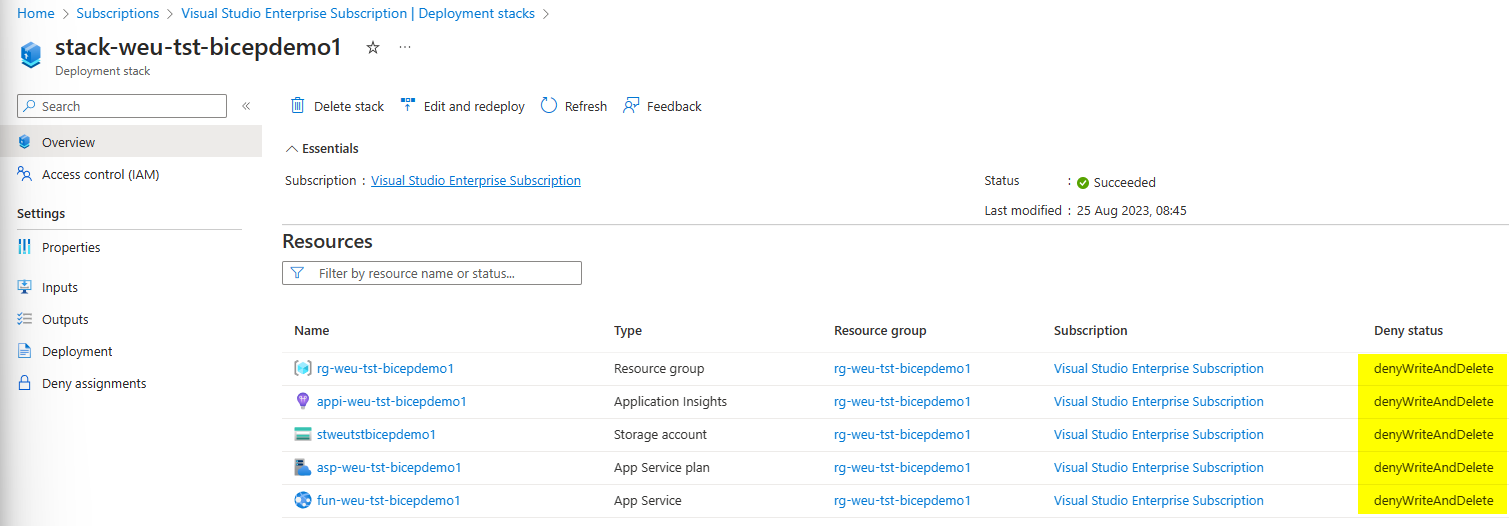

In the deployed Deployment Stack, the details will be displayed:

Note: The Deny status for all Resource Groups and Resources of the Deployment Stack are set to denyWriteAndDelete, the Deployment Stack will block all write and delete actions on the Resource Group or Resources controlled by the Deployment Stack.

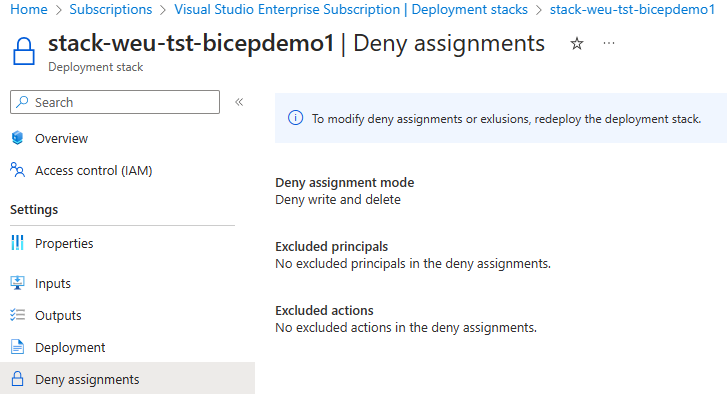

Deny assignments:

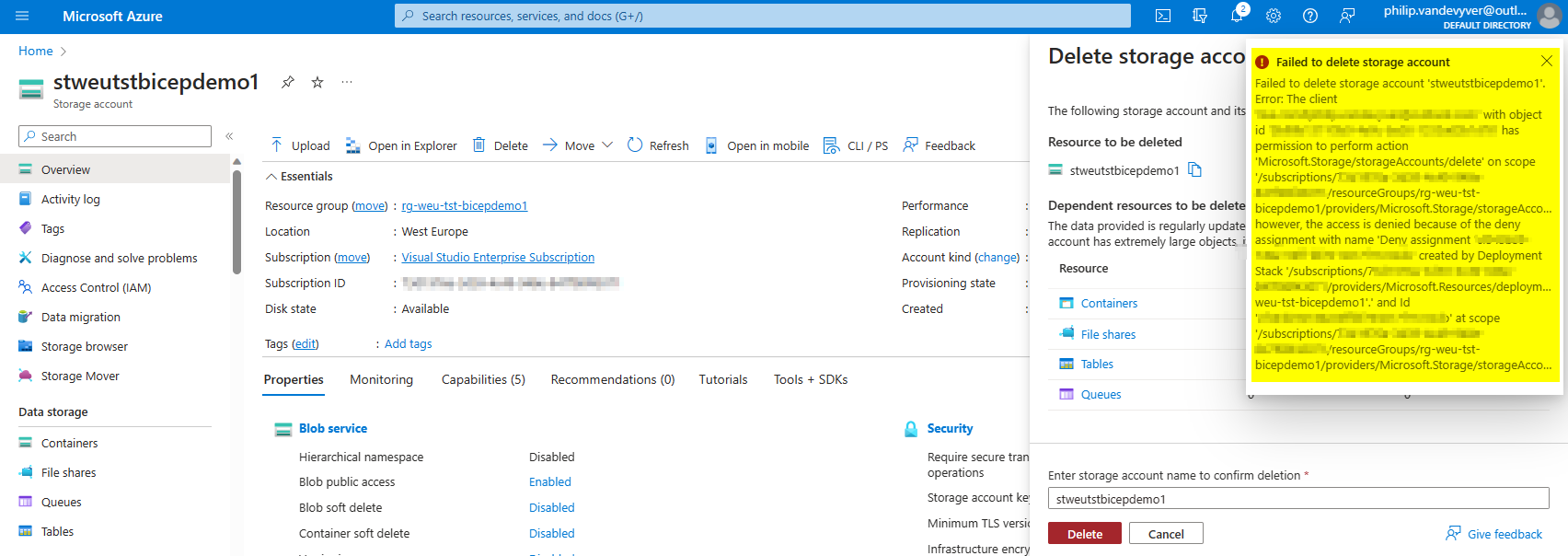

In an attemnt of deleting a storage account controlled by the Deployment Stack, will result as a deny because of the deny assignment created by Deployment Stack:

Update a Deployment Stack

To update a Deployment Stack (update controlled Resource Group, Resources or update DenySettingsMode), you can use the following script.

Note: In this example the DenySettingMode is set to None

Set-Deploymentstack.ps1

$inputObject = @{
    Name                        = "stack-weu-tst-bicepdemo1"
    TemplateFile                = "infra-as-code/bicep/orchestration/bicepdemo1/bicepdemo1.bicep"
    TemplateParameterFile       = "infra-as-code/bicep/orchestration/bicepdemo1/parameters/tst-bicepdemo1.bicepparam"
    DenySettingsMode            = "None"
    Location                    = "westeurope"
}

Set-AzSubscriptionDeploymentStack  @inputObject -Force

Update Result

The Deny status for the resources were updated:

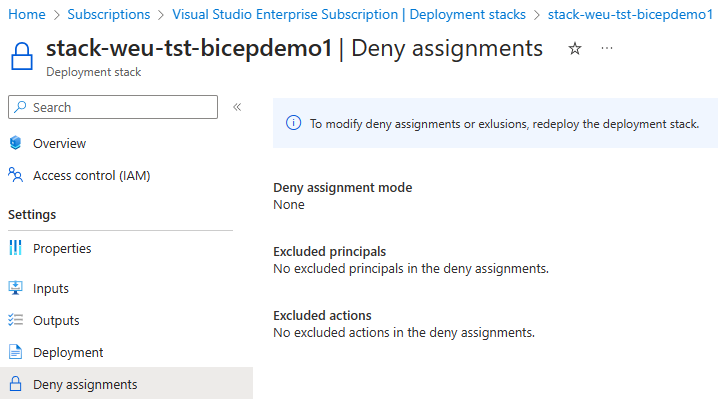

Also visible in the Deny assignments blade:

Delete a Deployment Stack

To delete a Deployment Stack and delete the resource groups and resources you can use the following script.

Remove-Deploymentstack.ps1

Remove-AzSubscriptionDeploymentStack `
    -name "stack-weu-tst-bicepdemo1" `
    -DeleteAll `
    -Force

Note: The removal of Deployment Stacks support the following options:

Detach: Detach resources and resource groups (Default)

DeleteAll: Delete both the resources and the resource groups

DeleteResourceGroups: Delete the resource groups only

DeleteResources: Delete resources only
